| Pixel Pitch (mm) | P1.95(GOB) | P2.6 | P2.97 | P3.91 | P4.81 |
|---|---|---|---|---|---|
| Model | E-iP1.95 | EiP2.6 | EP2.97 | EP3.91 | EP4.81 |
| Pixel Configuration | SMD1515 | SMD1515 | SMD2121 | SMD2020 | SMD2121 |
| Density (Pixels/㎡) | 262,144 | 147,928 | 112,896 | 65,536 | 43,264 |
| Module Resolution (Pixel) | 128×128 | 96×96 | 84×84 | 64×64 | 52×52 |
| Module Size (mm) | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 |
| Driving Mode (Duty) | 1/32 | 1/32 | 1/28 | 1/16 | 1/13 |
| Cabinet Size (mm) | 500×500 | 500×500 | 500×500 | 500×500 | 500×500 |
| Cabinet Weight (KG) | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 |
| Brightness (CD/㎡) | 800 | 750 | 800 | 800 | 700 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 480 | 480 | 480 | 576 | 560 |
| Avg. Power Consumption (W/㎡) | 160 | 160 | 160 | 192 | 190 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | 3,840 | 3,840 | 3,840 | 1,920/3,840 | 1,920/3,840 |

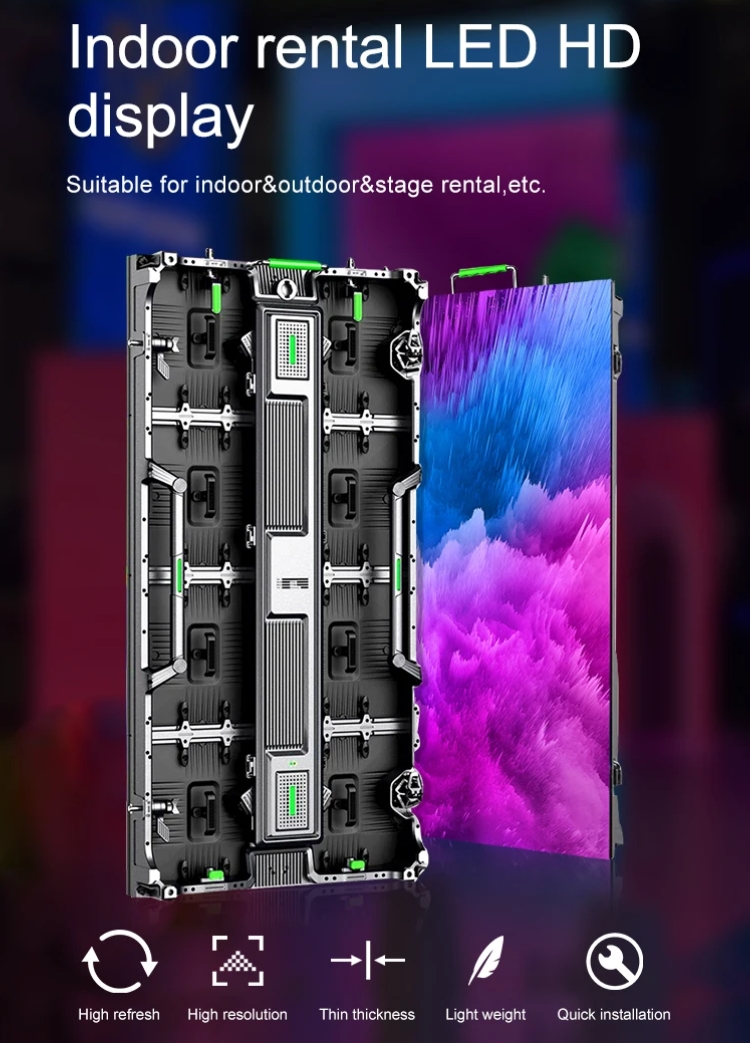

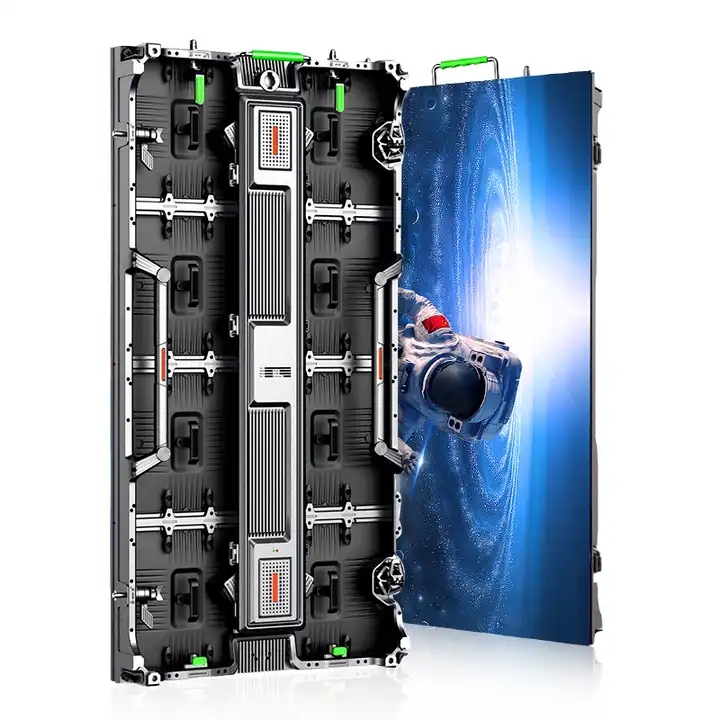

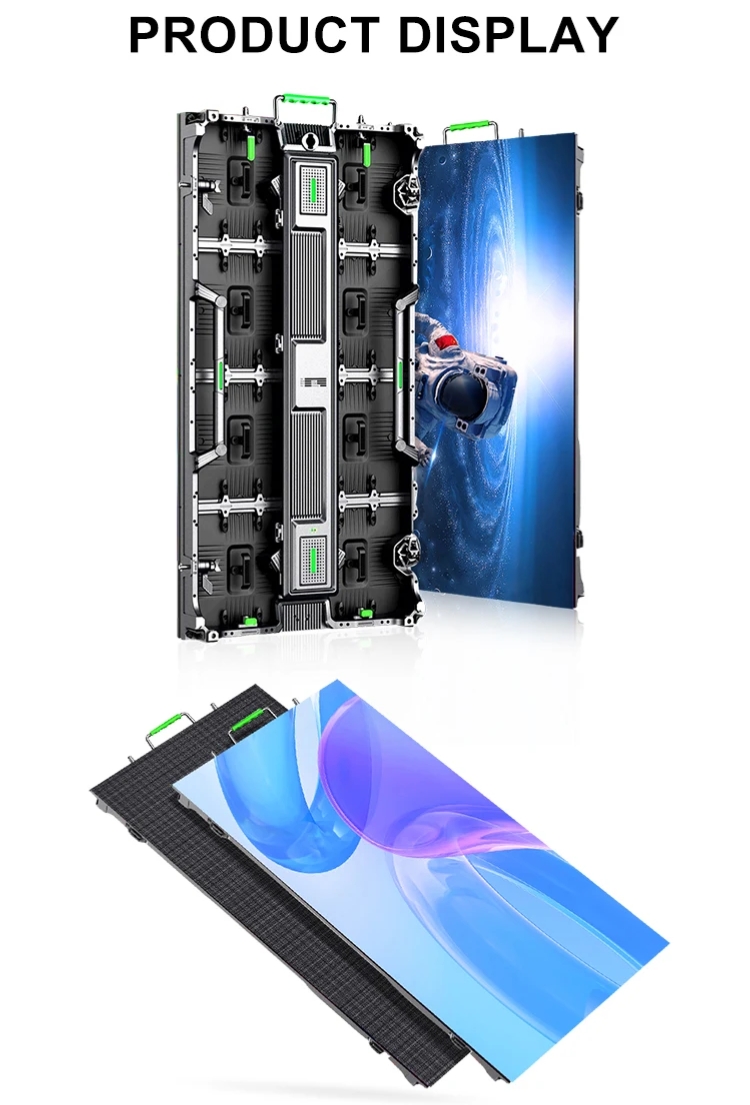

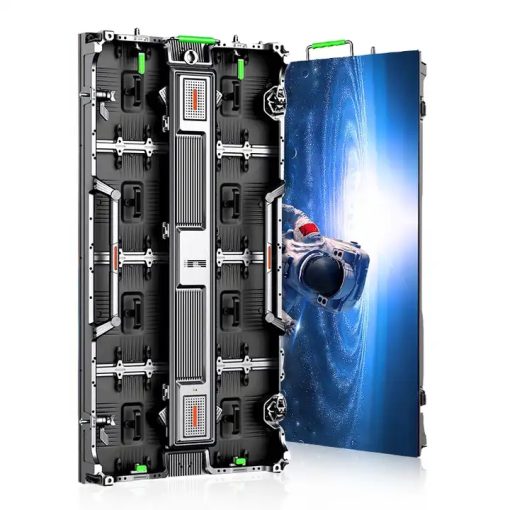

P2.976 indoor stage background led display cabinet with 3840 refresh rate

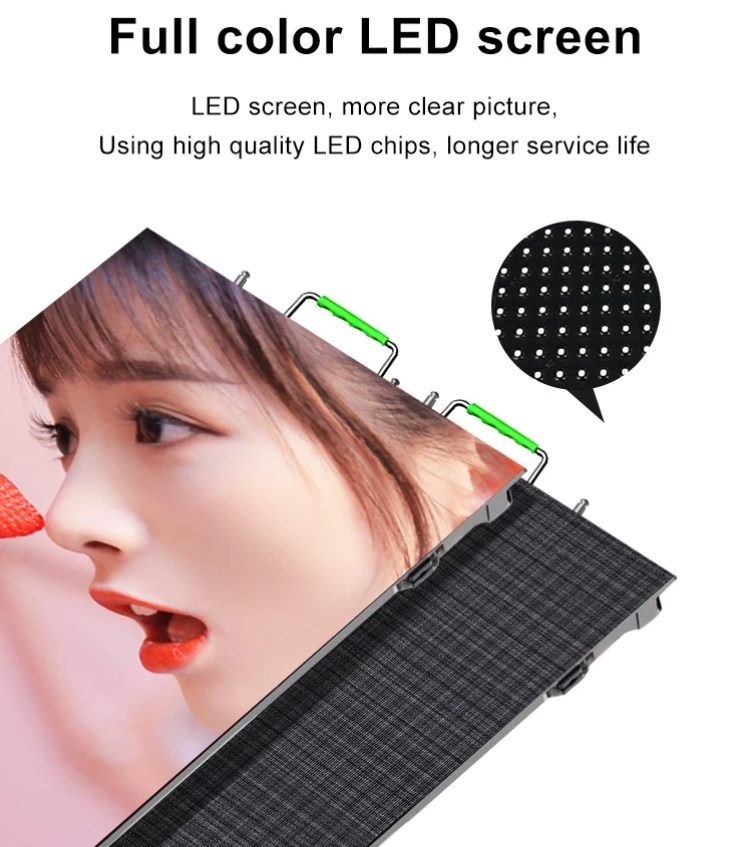

Indoor rental P2.976 LED Screen uses high quality SMD 3 in 1 brand LED Chips that are high efficiency luminescence, decreased attenuation of brightness, high reliability.
Pixel pitch: P2.976.
Led panel size: 500*500/1000mm.
Applications: indoor led events show.
Control systems: Novastar/Linsn/Colorlight.

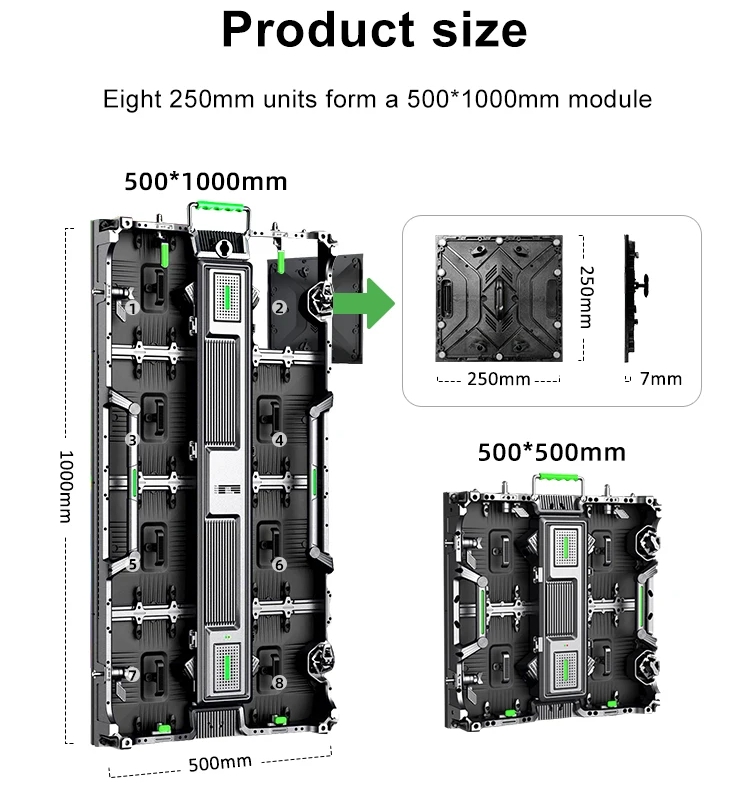

Indoor P2.976 rental LED display uses die-casting Aluminum as its cabinet material. P2.976 LED display panel has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market. The LED screen panel is 500×500 mm, which is more flexible for customization and easier to connect the panels into a bigger LED screen.
Indoor P2.976 LED Display Features:
- True and natural color performance, uniformity vivid display.
- High brightness, high resolution and high refresh rate.
- Seamless installation with excellent flatness.
- High contrast ratio which ensures vivid images.
- Low power consumption, environment friendly.
- Wide viewing angle, 160 degree in both horizontal and vertical.
- Customization for various size and adjustable.
- Easy installation and maintenance and low cost for maintenance.
- Light weight but solid structure.
- Long life span and stable performance.

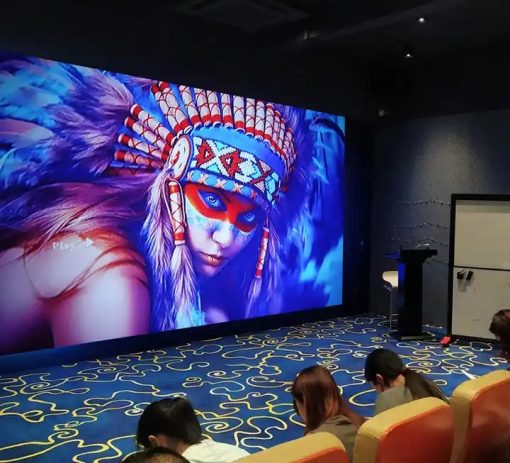

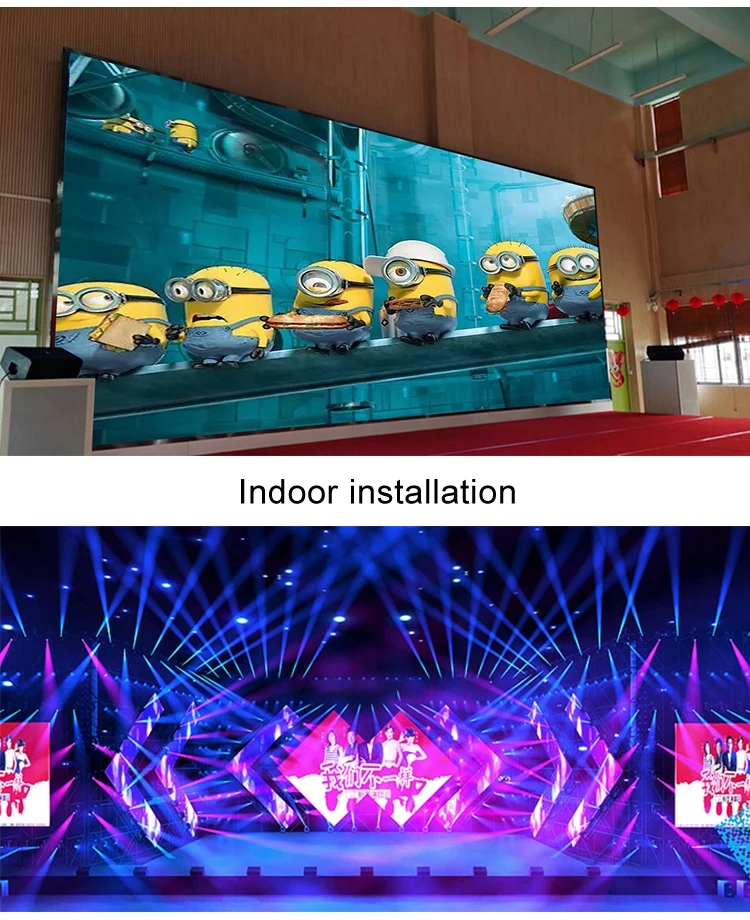

Background LED screen, P2.976 LED display panel 500×500 mm can be used in church, stages, shopping mall, theaters, museums, exhibitions, and a lot more.
LED Display Components:
LED display components are LED display modules, cabinets or frames, control systems, video processors, power systems, cables and screws.
LED display module is the most important component.
LED Display Control System:
Please check our blog to learn more about “How to control LED Display”.
Control system includes hardware and software. The hardware is installed inside LED screen, and software is installed in computer, laptop or mobile phone.
LED screen control systems brands which we cooperate with are Novastar, Huidu, Kystar, Sysolution and Linsn etc.
Synchronous Control: You can display the videos such as Videos, DV, TV programs on screens in real time. And it needs to connect computer or laptop while the screen is working.
Video Processor and Power Supply:
Video processor supports multi video signal input (HDMI, DP, VGA, DVI etc.), multi video resolution (720P, 1080P, 4K, 8K etc.), multi video formats and video display solutions.
Brands which we cooperate with are Vdwall, Kystar, and Novastar etc.
Power supply supplies stable power output for LED screens in different environment.
Brands which we cooperate with are Meanwell, Chuanglian and G-energy etc.
Indoor 500x500mm Rental LED Display Series Parameter
